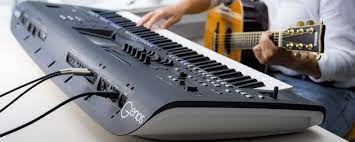

Genos is Yamaha’s flagship digital workstation, which improves upon the Tyros5 with a complete redesign, added features and an improved sample library. With its intuitive controls, a 9-in. color touchscreen, assignable sliders and buttons, state of the art content and professional connectivity, Genos is the ultimate songwriting and performance tool. To produce its exceptional sample library of real-sounding instruments, Genos is equipped with Yamaha’s Advanced Element Management (AEM) technology. This system powers the new Revo! Drums and Super Articulation 2 (SA2), producing realistic sounds replicating performance nuances.
Touchscreen and Control
The color touchscreen allows you to easily see the state of Voice and Style assignments and quickly access and adjust a wealth of features and settings. The OLED sub display above the assignable knobs and sliders changes to reflect the parameters of the assigned controllers in real-time. Assignable knobs allow you to manipulate various effects and parameters such as Voices, Styles and more.
Realistic Sounds
The CFX Premium Grand Piano Voice recreates the power and tone of Yamaha's CFX concert grand piano. Additionally, the Genos introduces Revo! Drums, which takes advantage of unprecedented multi-dynamic sample layers and round-robin sample cycling to produce realistic sounding MIDI drums. Ensemble Voices authentically recreate the sound of horn, string and woodwind ensembles by intuitively splitting the instruments into their appropriate ranges, producing an authentic sounding ensemble performance. Super Articulation 2 (SA2) allow players to get expressive nuances from non-keyboard instruments, such as a flute or guitar, both automatically and with the use of the two switches. Registration Memories allows you to save and recall panel settings like Voice, Song, Pattern and/or Style to quickly access your favorite configurations.
Connectivity
The combo mic/line input jack with optional 48V phantom power lets you connect an instrument, or any microphone, even those requiring power, for onboard recording or performance. The USB TO HOST port allows players to connect to and interact with a wide variety of educational, creative and entertaining musical applications on a computer or mobile device. Using the onboard MIDI and audio recording features, or by interfacing with computer-based digital audio workstations, you can easily record your song ideas or performances.
Technical Specifications
| Genos | ||
|---|---|---|
| Dimensions | Width | 1,234 mm (48-9/16") |
| Height | 138 mm (5-7/16") | |
| Depth | 456 mm (17-15/16") | |
| Weight | Weight | 13.0 kg (28 lb, 11 oz) |
| Keyboard | Number of Keys | 76 |
| Type | Organ (FSX), Initial Touch/Aftertouch | |
| Touch Response | Normal, Easy1, Easy2, Soft1, Soft2, Hard1, Hard2 | |
| Other Controllers | Joystick | Yes |
| Control Knobs | 6 Live Control knobs (Assignable) | |
| Sliders | 9 Live Control sliders (Assignable), Cross Fader | |
| Art. Switches | 3 | |
| Display | Type | Main Display : TFT Color Wide VGA LCD | Sub Display: OLED (Live Control view) |
| Size | Main Display : 800 x 480 dots (9 inch) | Sub Display: 589 x 48 dots | |
| Touch Screen | Main Display : Yes | |
| Language | Main Display : English, German, French, Spanish, Italian | Sub Display: English | |
| Panel | Language | English |
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling, AEM technology |
| Polyphony | Number of Polyphony (Max.) | 256 (max.) (128 for Preset Voice + 128 for Expansion Voice) |
| Preset | Number of Voices | 1,652 Voices + 58 Drum/SFX Kits |
| Featured Voices | 10 Revo! Drums/SFX, 76 Ensemble, 390 Super Articulation!, 75 Super Articulation2!, 82 MegaVoice, 40 Sweet!, 81 Cool!, 160 Live!, 24 Organ Flutes! | |
| Compatibility | XG | Yes (for Song playback) |
| GS | Yes (for Song playback) | |
| GM | GM (for Song playback) | |
| GM2 | GM2 (for Song playback) | |
| Part | Right 1, Right 2, Right 3, Left | |
| Capacity | Voice | Yes (approx.3.0 GB) |
| Style&Voice Set | Yes (Internal Memory) | |
| Types | Reverb | 59 Preset + 30 User |
| Chorus | 107 Preset + 30 User | |
| DSP | Variation: 358 Preset(with VCM) + 30 User | Insertion 1–28: 358 Preset(with VCM) + 30 User | |
| Master Compressor | 5 Preset + 30 User | |
| Master EQ | 5 Preset + 30 User | |
| Part EQ | 28 Parts | |
| Vocal Harmony | Number of Presets | Vocal Harmony: 54 | Synth Vocoder: 20 |
| Number of User Settings | 60 * The number is the total of Vocal Harmony and Synth Vocoder | |
| Vocal Effect | Mic Effect: Noise Gate, Compressor, 3 Band EQ | Vocal Effect: 23 | |
| Preset | Number of Preset Styles | 550 |
| Featured Styles | 491 Pro, 39 Session, 10 Free Play, 10 DJ | |
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard | |
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | |
| Other Features | One Touch Setting (OTS) | 4 for each Style |
| Chord Looper | Yes | |
| Style Section Reset | Yes | |
| Compatibility | Style File Format (SFF), Style File Format GE (SFF GE) | |
| Preset | Number of Multi Pad Banks | 448 Banks x 4 Pads |
| Audio | Audio Link | Yes |
| Preset | Number of Preset Songs | 9 Demo Songs, 11 Preset Songs |
| Recording | Number of Tracks | 16 |
| Recording Function | Quick Recording, Multi Track Recording, Step Recording | |
| Compatible Data Format | Playback | SMF (Format 0, Format 1) , XF |
| Recording | SMF (Format 0), approx. 3 MB per Song | |
| Audio Recorder/Player | Playback | WAV (44.1 kHz, 16 bit, stereo), MP3 (44.1 kHz, 64/96/128/256/320 kbps, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo), approx. 0.8 GB (80 minutes) per Song | |
| Time Stretch | Yes | |
| Pitch Shift | Yes | |
| Vocal Cancel | Yes | |
| Voices | Harmony/Echo | Yes |
| Arpeggio | Yes | |
| Panel Sustain | Yes | |
| Mono/Poly | Yes | |
| Styles | Style Creator | Yes |
| OTS Information | Yes | |
| Multi Pads | Multi Pad Creator | Yes |
| Registration | Number of Buttons | 10 |
| Control | Registration Sequence, Freeze | |
| Playlist | Number of Records | 2,500 (max.) Records per Playlist file |
| Songs | Score Display Function | Yes |
| Lyrics Display Function | Yes | |
| Search | Registration Bank | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500, Tap Tempo | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Octave Button | Yes | |
| Scale Type | 9 Types | |
| Sub Scale Setting | Yes | |
| Miscellaneous | Direct Access | Yes |
| Text Display Function | Yes | |
| Wallpaper Customization | Yes | |
| Display Out | Yes (by using a commercially USB display adaptor) * For a list of compatible devices, access the “Yamaha Downloads” website. *Genos generates a 800 x 600 size image for external display. The size of Genos main display is 800 x 480, so there will always be blank areas at the top and bottom of the image. | |
| Storage | Internal Memory | Yes (approx. 58 GB) |
| External Drives | USB flash drive | |
| Connectivity | Headphones | Standard stereo phone jack (PHONES) |
| FOOT PEDAL | 1 (SUSTAIN), 2 (ART.1), 3 (VOLUME), Function assignable | |
| Microphone | Yes (Combo Jack) , Phantom Power (+48V) available | |
| MIDI | MIDI A (IN/OUT) , MIDI B (IN/OUT) | |
| AUX IN | L/L+R, R | |
| DIGITAL OUT | Yes (coaxial) | |
| LINE OUT | MAIN (L/L+R, R) , SUB (1, 2) , SUB (3, 4 / AUX OUT) | |
| USB TO DEVICE | Yes (x 3) | |
| USB TO HOST | Yes | |
| LAN | Yes (*) , Standards: IEEE802.11b/g/n (IEEE802.11n 5GHz: not compatible) *May not be included, depending on your area. Check with your Yamaha dealer. | |
