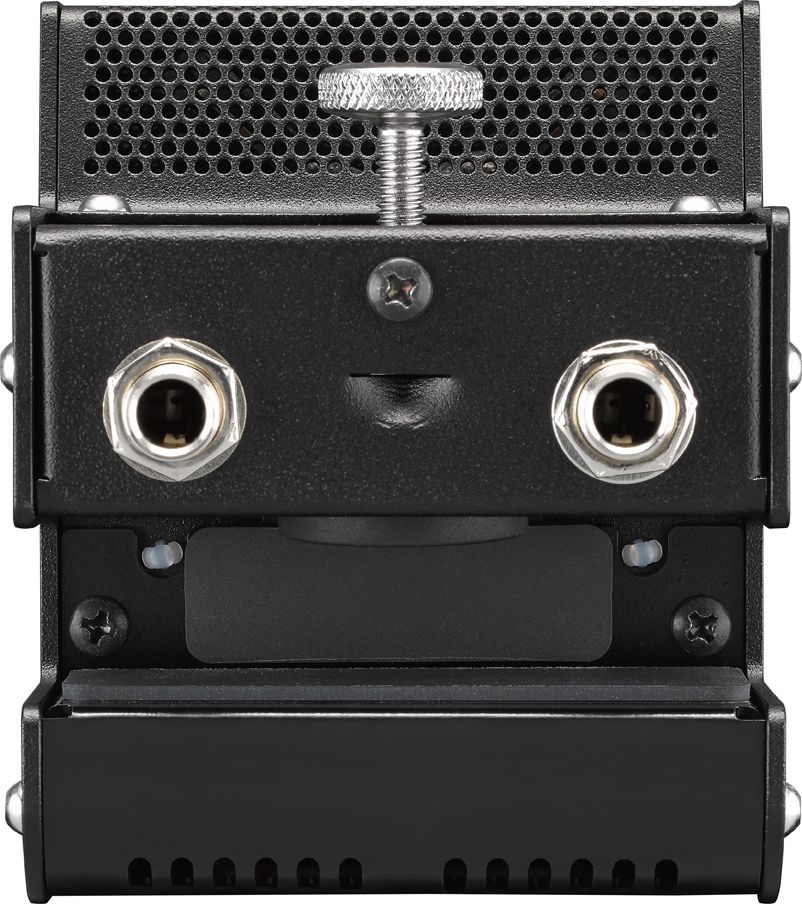

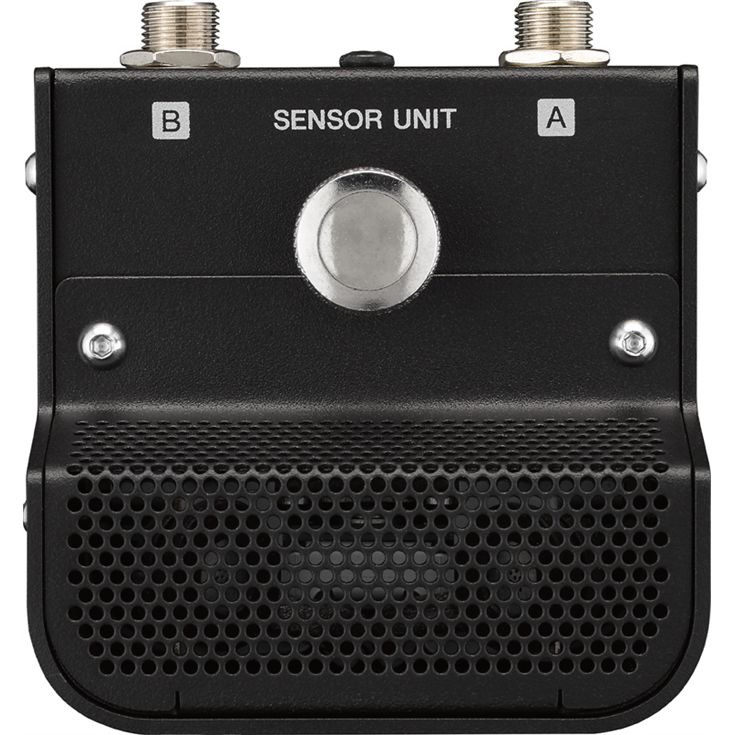

The sensor unit
The sensor unit of the EAD10 comprises a specially developed XY stereo microphone sensor and trigger sensors, allowing you to capture a balanced recording of the entire kit by placing this at the center of the kit itself.
The microphone capsule is a newly-developed microphone that comes equipped with the ultra-high sound pressure resistance and strong noise resistance suitable for recording drums. The entire sensor unit, including the grill that covers the microphone capsule, incorporates an acoustical design that allows for the adjustment of directivity and frequency characteristics. The preamplifier is equipped with custom parts, and the mic itself is designed to draw out the maximum dynamic range of a drum kit while achieving the balance ideal for recording, allowing for clear, dynamic sounds.
Additionally, the range of sounds that can be created has been greatly expanded, using the trigger sensor to combine bass drum sounds with a PCM sound source.
The EAD10 has achieved both simplicity and quality by combining technologies that can only be developed by a comprehensive manufacturer.
The sensor unit of the EAD10 comprises a specially developed XY stereo microphone sensor and trigger sensors, allowing you to capture a balanced recording of the entire kit by placing this at the center of the kit itself.
The main unit
The microphone capsule is a newly-developed microphone that comes equipped with the ultra-high sound pressure resistance and strong noise resistance suitable for recording drums. The entire sensor unit, including the grill that covers the microphone capsule, incorporates an acoustical design that allows for the adjustment of directivity and frequency characteristics. The preamplifier is equipped with custom parts, and the mic itself is designed to draw out the maximum dynamic range of a drum kit while achieving the balance ideal for recording, allowing for clear, dynamic sounds.
Additionally, the range of sounds that can be created has been greatly expanded, using the trigger sensor to combine bass drum sounds with a PCM sound source.
The EAD10 has achieved both simplicity and quality by combining technologies that can only be developed by a comprehensive manufacturer.

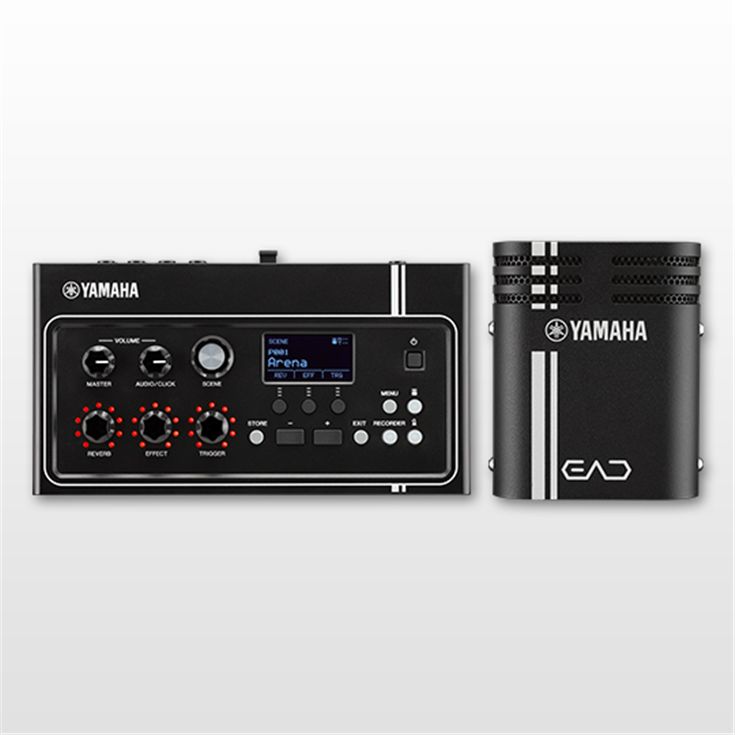

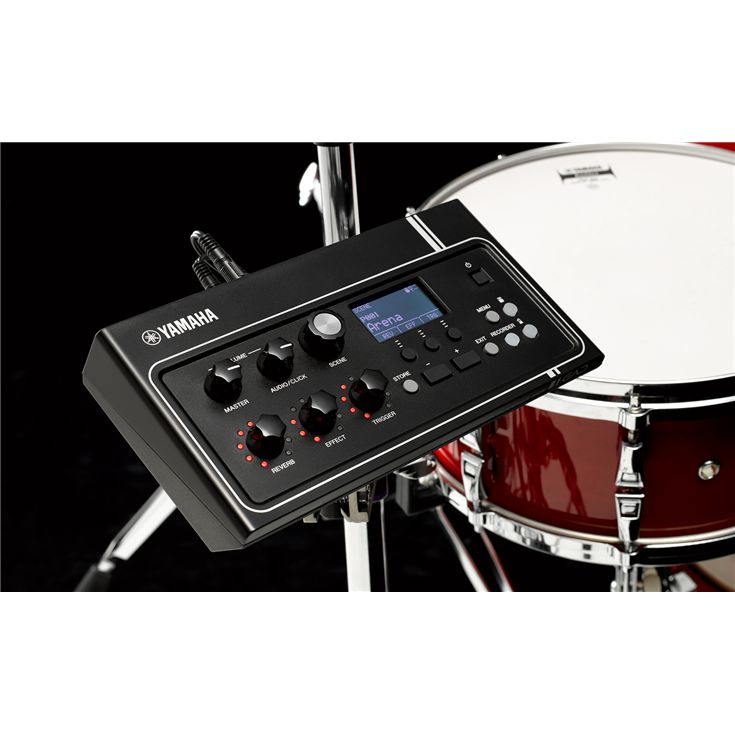

The Main Unit
The main unit of EAD10 is designed with ease of use in mind.
The left side of the main unit comes equipped with large knobs that can easily be adjusted mid-performance, so that the main control functions like volume and preset scene can be accessed easily. LED indicators have been added to the preset scene controls of reverb, effect, and trigger to make them more visible. This allows for understanding of current settings as well as quick and intuitive adjustment on even the darkest of stages. The buttons and LCD display on the right allow for even more detailed adjustments.
Additionally, a high-performance headphone amplifier was also developed specifically for this unit, and delivers power and performance that cannot be outdone by the dynamic sounds of acoustic drums.
It also comes equipped with many high-quality effects and PCM sound sources used in Yamaha electronic musical instruments. Furthermore, by using the trigger sensing technology from electronic drums, it creates added value for acoustic drums, making them into a completely new musical instrument.

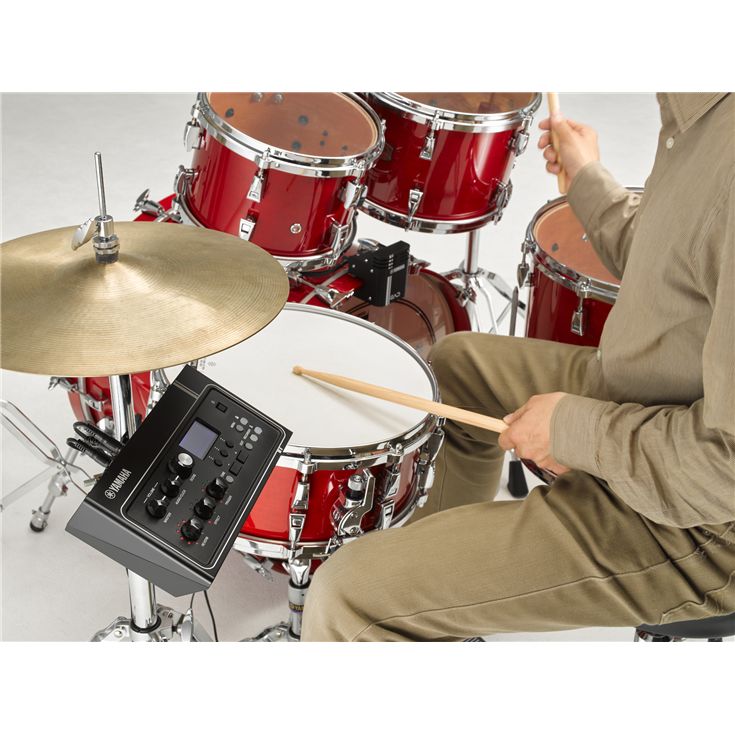

Mechanism of the EAD10
The EAD10 can capture the sounds of an entire drum kit and monitor them at a high quality just by attaching the sensor to the bass drum. By simply turning the knob on the module, you can control various effects and change the drum sound.
Connect with Smart Device/App
The EAD10 can be played with your favorite music from smart devices via an AUX cable or USB cable connection.
Using the free Android/iOS Rec'n'Share app, you can practice by adding a metronome to your favorite music, record audio, record video, edit, and upload to SNS right from your drum kit. Also, if you have a USB flash drive, you can record your own drum performance for up to 90 minutes.
Add Trigger & Pad
The EAD10 can connect to a maximum of six triggers and pads, including the bass drum trigger of the sensor, to augment your kit with percussion, electronic sounds and loops and expand the range of expression.
Talkback Function
A player's voice can be captured by the microphone of the unit sensor by operating the Mic button on the module or by using the pedal. This makes it perfect for video creation and web lessons.
